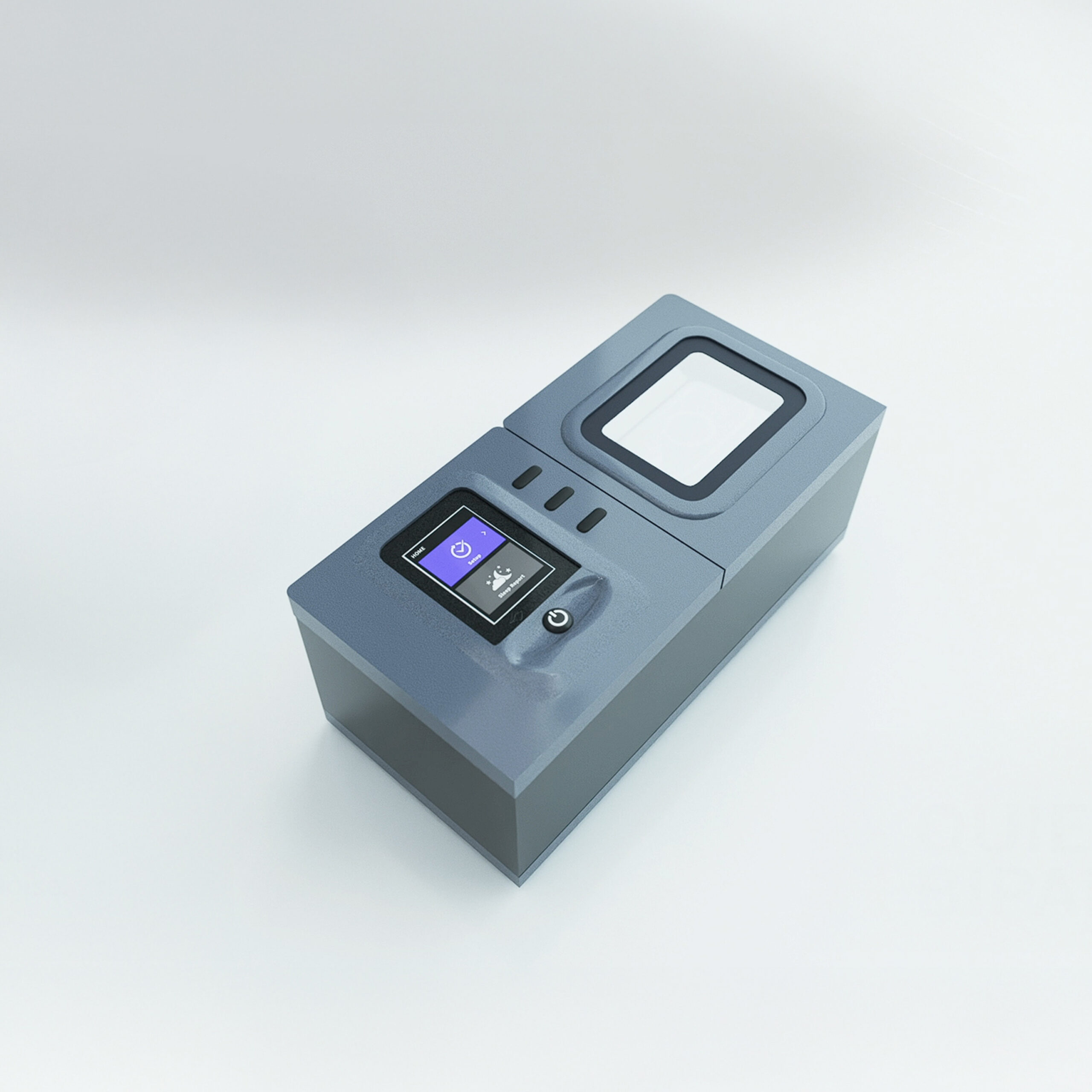

Deck Mount Respirare Bipap VT100 ST

Key Features

Supported by RespiView – Deckmount’s PC-based clinicial analysis and patient data management software. It enables you to review device therapy settings and download, analyze and store therapy data.

Ramp for Extra Comfort – Respirare BiPAP offers Ramp feature to help patients ease into therapy session. Ramp reaches the prescribed therapy level gradually and comfortably.

Integrated humidification – Humidification makes therapy more comfortable and can eliminate issues like dry nose and throat.

In.trigger – lets you set min and max limits on wither side of the patients ideal inspiratory time (i-time).

SPECIFICATIONS :-
Therapy Modes CPAP, T, S, ST
Operating Range CPAP: 4-20 cmH2O , IPAP: 4-30 cmH2O | EPAP: 4-20 cmH2O
Sound Pressure Level <28 dBA with uncertainty of 2 dBA Peak Flow 220 LPM Respiratory Rate 4-45 BPM Ramp/Rise Time Off, 5-45 mins/100-950 ms Humidification Level Off, 1-5 Level Alarms Leak Alert With Beep Data Management 1/7/31 Days, 6 Months, 1 Year Of Detailed Data Dimensions 290x160x110 mm/1800 g (Device with Humidifier) Power Adapter Input Range: 100-240V, 50/60 Hz, 3A, 24V, 90 Watt (Typical Power Consumption) Operating Temperature / Humidity / Altitude +5 c To +35 c / 10-95% relative humidity, non-condensing/sea level to 2,591 m, air pressure range 735 hpa to 1013 hpa Storage and Transport Temperature / Humidity -20 c to +60 c / 5-95% relative humidity, non-condensing Supplement Oxygen Maximum Flow: 4L/min (CPAP), 15 L in S,T,ST Standard Air Filter Pollen Filter (Washable) Tubing Standard (19mm) Air Outlet 22 mm Air Outlet (STD) Warranty 2 Years (Repair/Replacement)* Display 2.8 in LCD Sensitivity 1-5 Levels Ti / Ti min / Ti Max 0.2-4 sec / 0.2-3 sec / 0.4-4 sec Gender Selection Male / Female Conforms to Standards IEC 60601-1-1, IEC 60601-1-2, IEC 80601-2-12, CDSCO Approved, Class 2 ( Double Insulated, Type BF, Ingress Protection IP22 )
